XPG Fusion 1600 Titanium Digital Power Supply Review
Summary: The XPG Fusion 1600 Titanium Digital Power Supply packs a punch but does come at a cost
5
Ultimate power
The XPG Fusion 1600 Titanium Digital Power Supply is a flagship product that stands out in the realm of high-performance power supplies. Designed to cater to the needs of enthusiasts, elite gamers and professionals alike, this power supply offers unparalleled efficiency, reliability and cutting-edge features. With an 80 Plus Titanium certification, it guarantees exceptional energy efficiency, ensuring minimal power wastage and reduced electricity costs. Given that, this makes it an ideal choice for users who demand both performance and sustainability, however, just be warned that these high-end features come at a cost and in Australia from $1079AUD (April 2025).

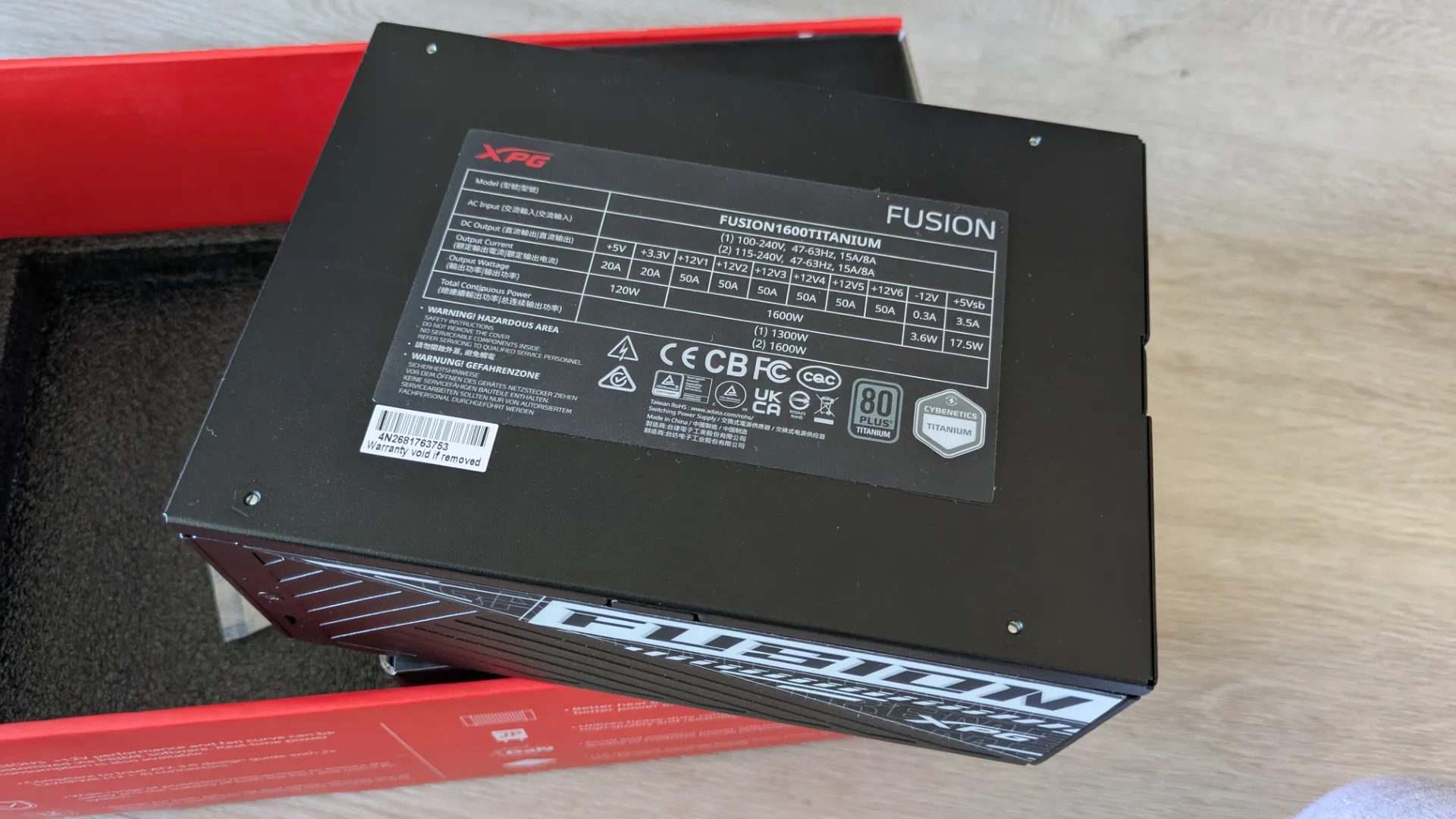

XPG Fusion 1600 Titanium Digital Power Supply Specifications
| PRODUCT NAME | FUSION 1600 TITANIUM Power Supply |
| DIMENSIONS (L X W X H) | 210 x 150 x 86mm |
| CYBENETICS RATING | TITANIUM |
| 80 PLUS RATING | TITANIUM |
| ATX VERSION | ATX 3.0 |
| PROTECTIONS | OCP | OVP | OPP | OTP | UVP | SCP | NLO | SIP |
| CERTIFICATION | CE | CB | FCC (IC) | TUV | cTUVus | TUV S-Mark | NOM | BSMI | UKCA | CQC | EAC |
| PFC | > 0.99 |
| INPUT VOLTAGE | 115-240V |
| INPUT CURRENT | 15A | 8A |
| INPUT FREQUENCY | 47Hz-63Hz |
| DC OUTPUT VOLTAGE | +5V | +3.3V | +12V | -12V | +5Vsb |
| TOTAL OUTPUT | 1600W |
| POWER EXCURSION | 3760W (*up to 235% of the PSU’s rated power for 100μs) |
| OPERATING TEMPERATURE | 50°C |
| FAN SIZE | 135 x 135 x 25mm |
| FAN BEARING | Double Ball Bearing |
| FAN SPEED | 2700 ± 10% RPM |
| MTBF | 125,000 hours @ 25°C |
| ATX 24 PIN CONNECTOR | 1 |
| EPS 8 PIN CONNECTOR | 2 |
| PCI-E 6+2 PIN CONNECTOR | 10 |
| MOLEX 4 PIN CONNECTOR | 4 |
| 12V-2X6 (12+4) CONNECTOR (600W) | 2 |
| SATA CONNECTOR | 12 |
| WEIGHT | Product + cables：2.5kg + 1.84kg (5.51lb+4.06lb) ±5% |
| WARRANTY | 12 Years |
| FLOPPY 4 PIN CONNECTOR | 1 |
One of the most remarkable aspects of the Fusion 1600 is its ability to deliver a staggering 1600 watts of power that allows for computer run beasts. Whether you’re running multiple high-end graphics cards, a powerful CPU, or a combination of both, this power supply can handle it with ease. Its ATX 3.0 compatibility and dual 12VHPWR connectors further enhance its versatility, allowing it to support next-generation graphics cards and other high-power components. This forward-thinking design ensures that the Fusion 1600 remains relevant as technology continues to evolve.

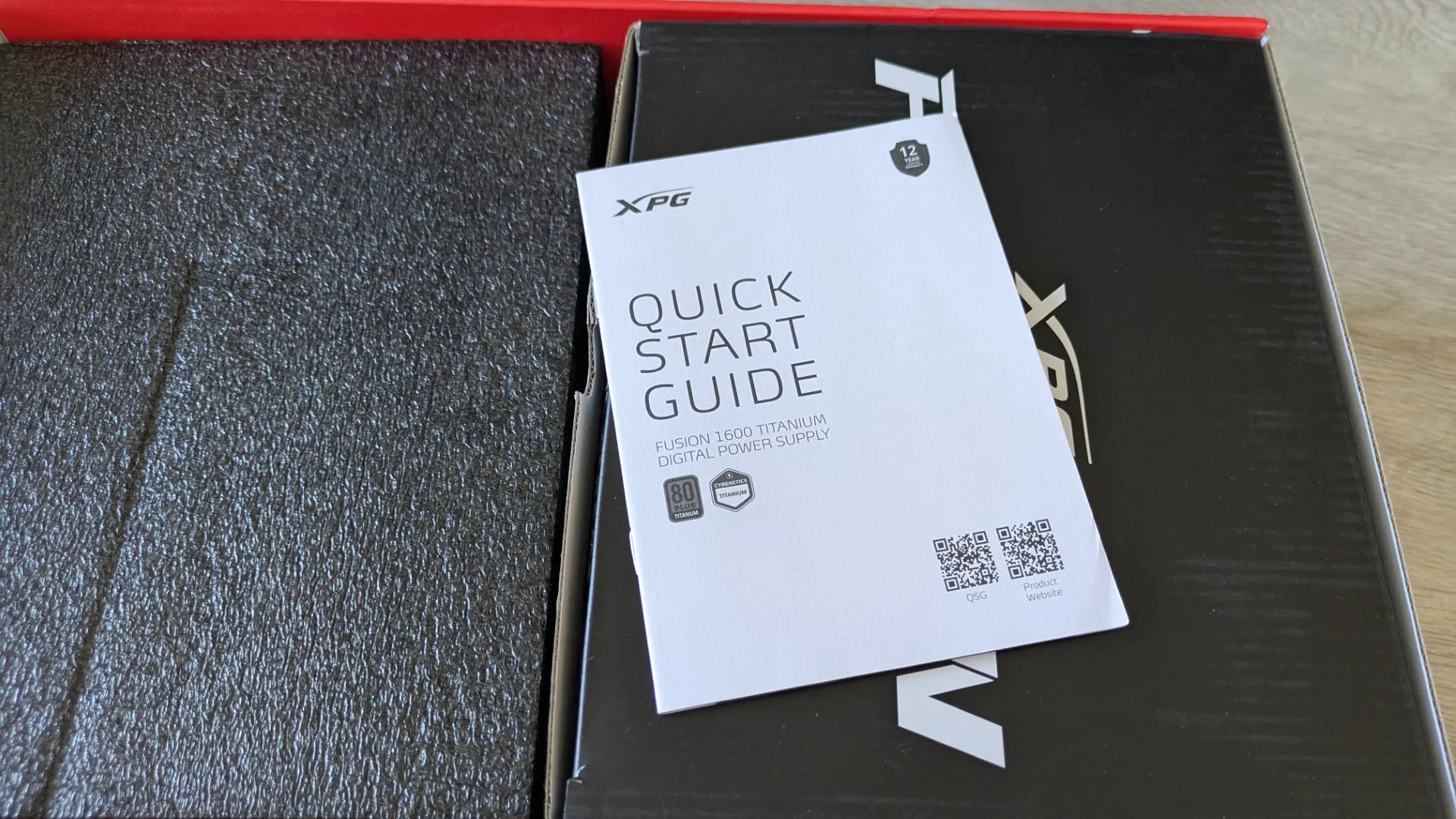

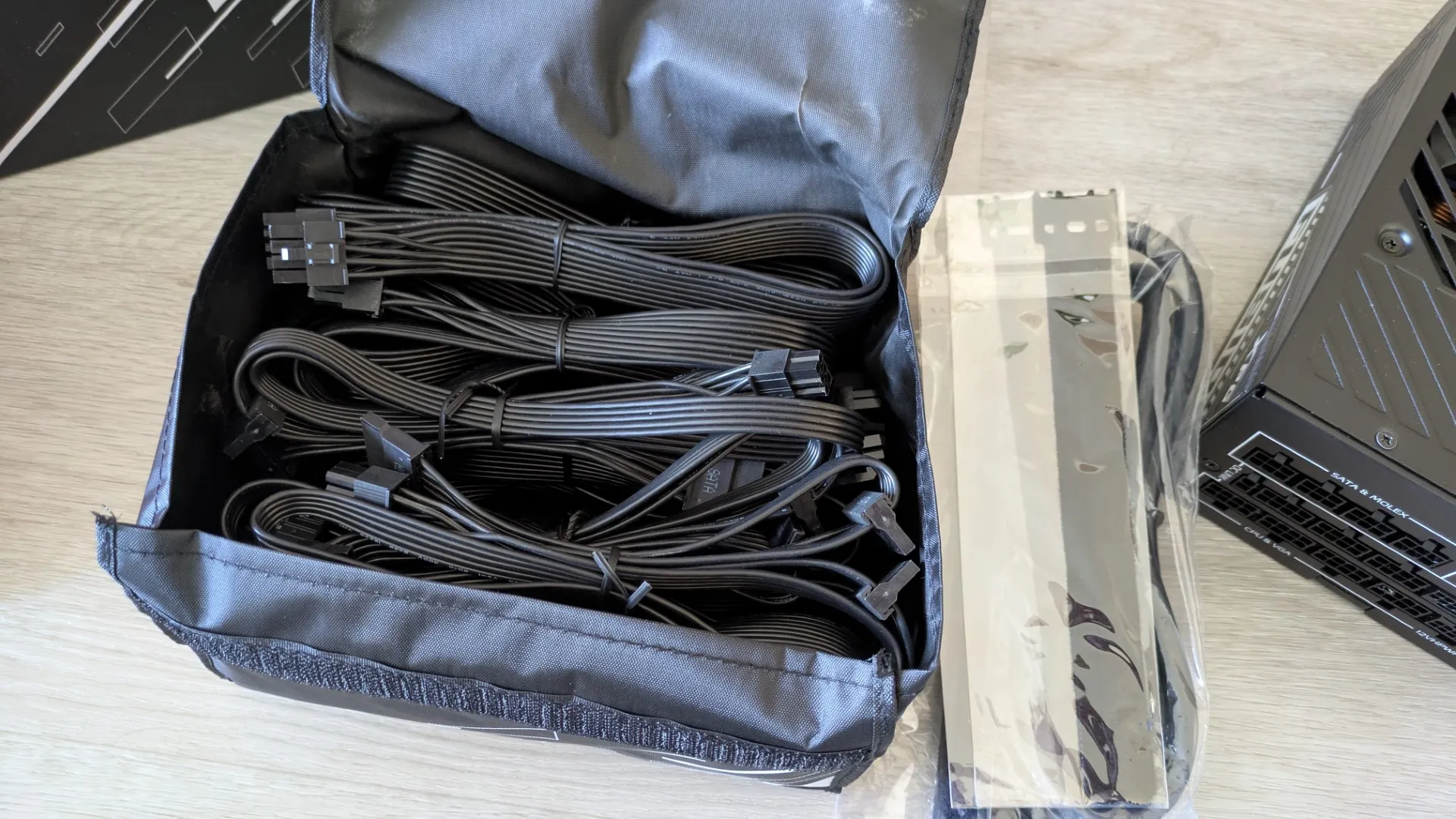

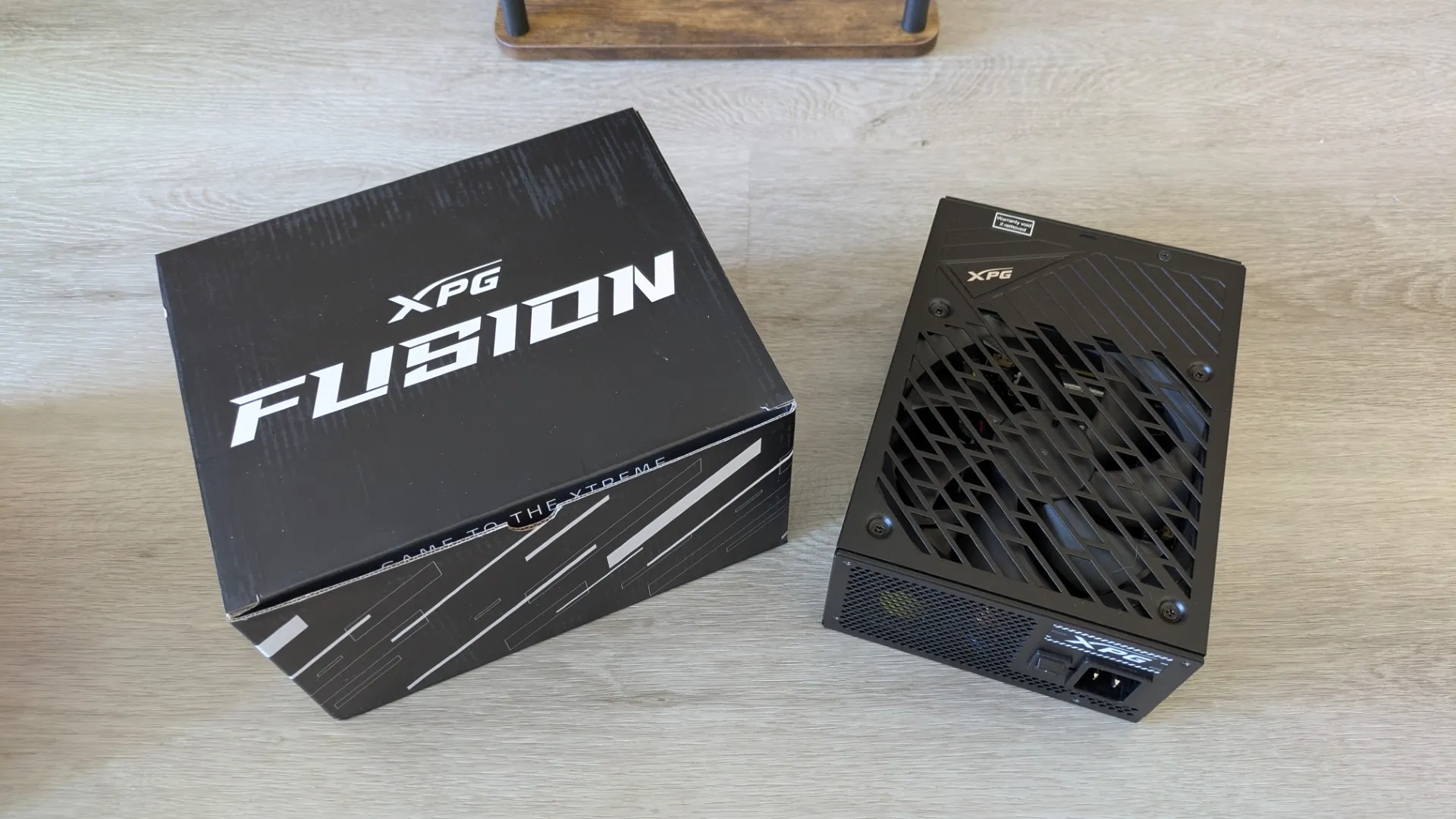

Unboxing

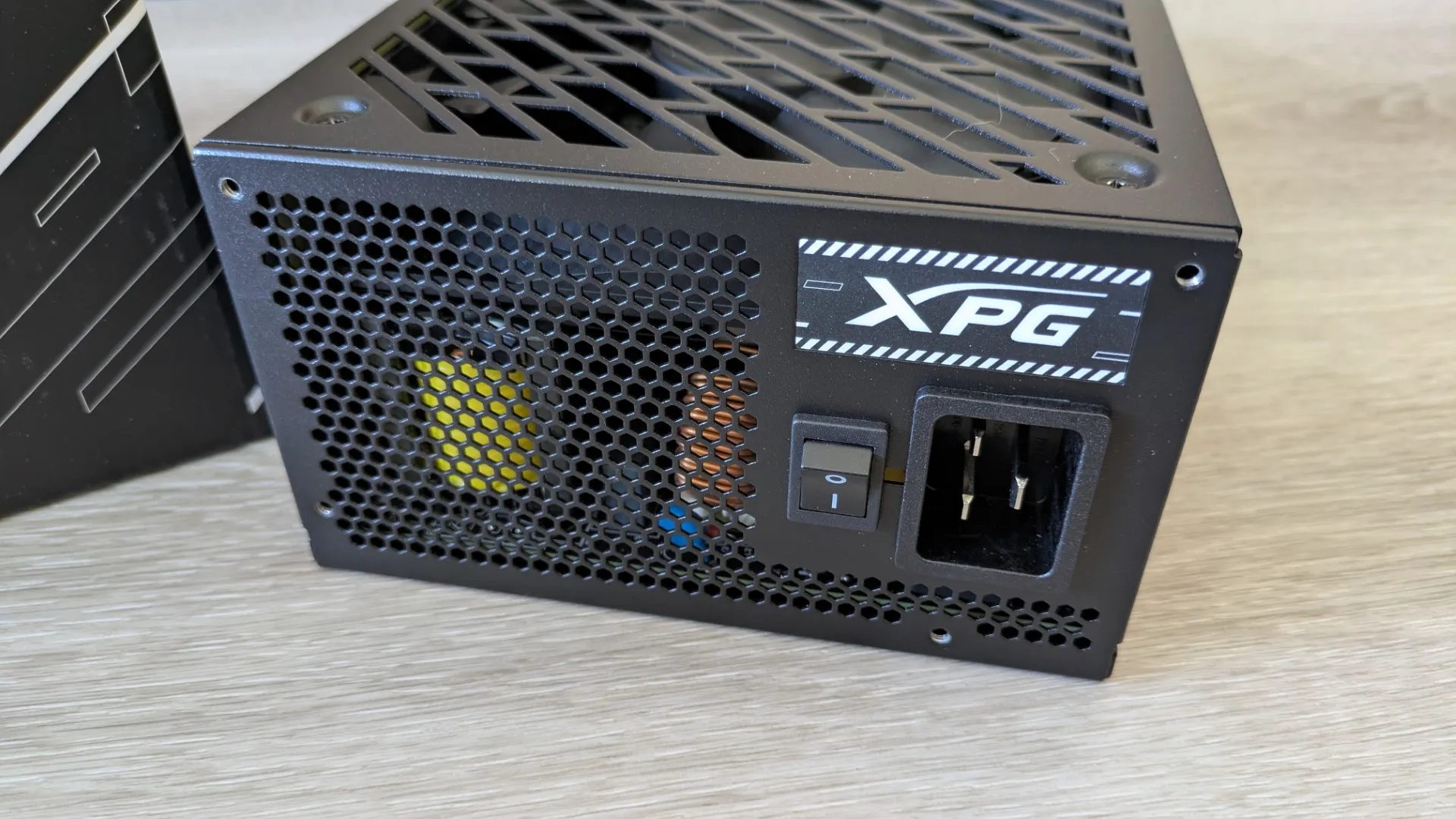

The build quality of the Fusion 1600 is nothing short of exceptional as it’s constructed with premium materials and features 100% Japanese capacitors to withstand the rigors of continuous operation. The use of Gallium Nitride (GaN) MOSFETs and a patented planar transformer design not only improves efficiency but also reduces clutter and enhances airflow within the unit. This results in superior cooling performance, which is crucial for maintaining stability and longevity under heavy loads.

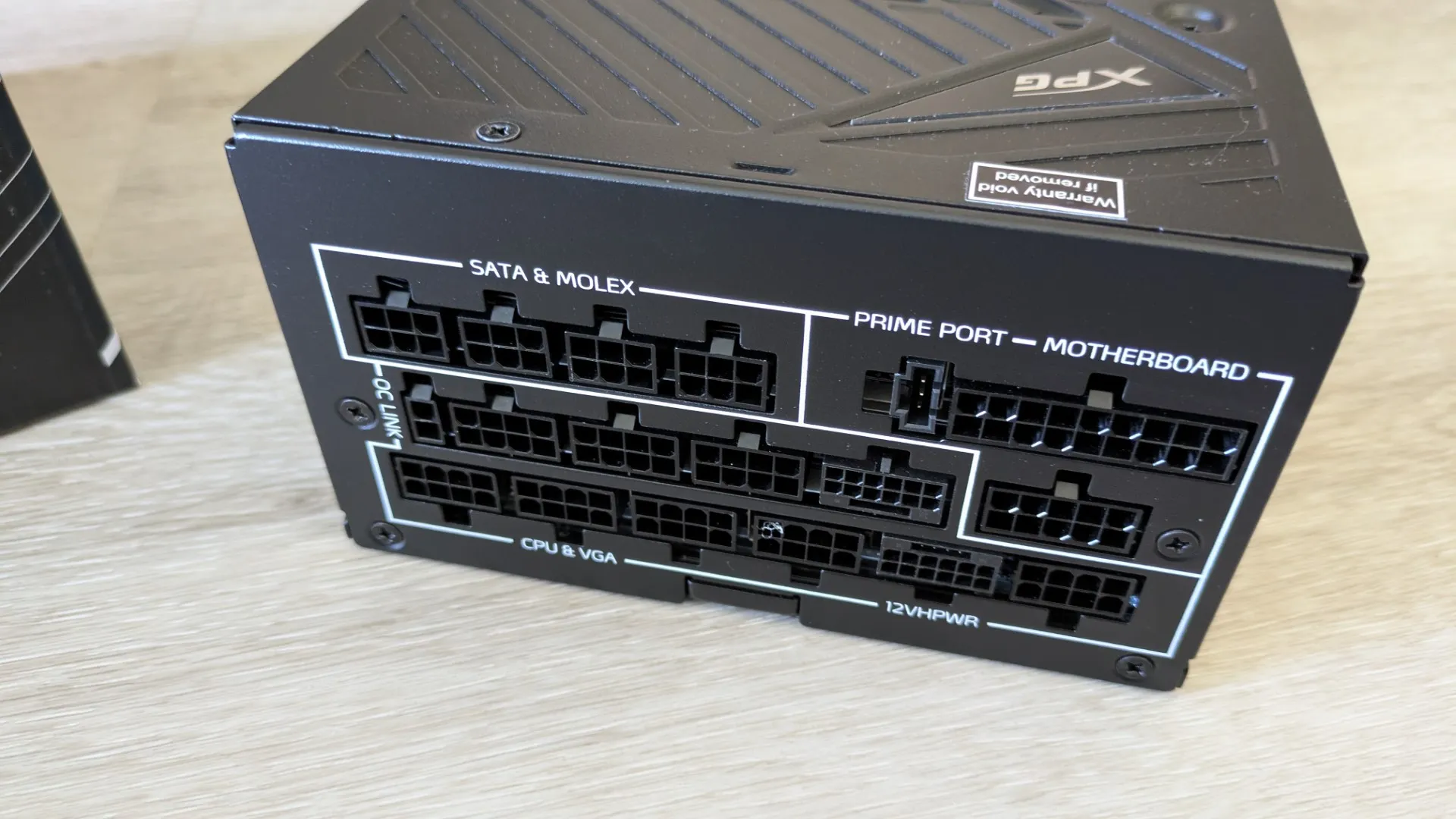

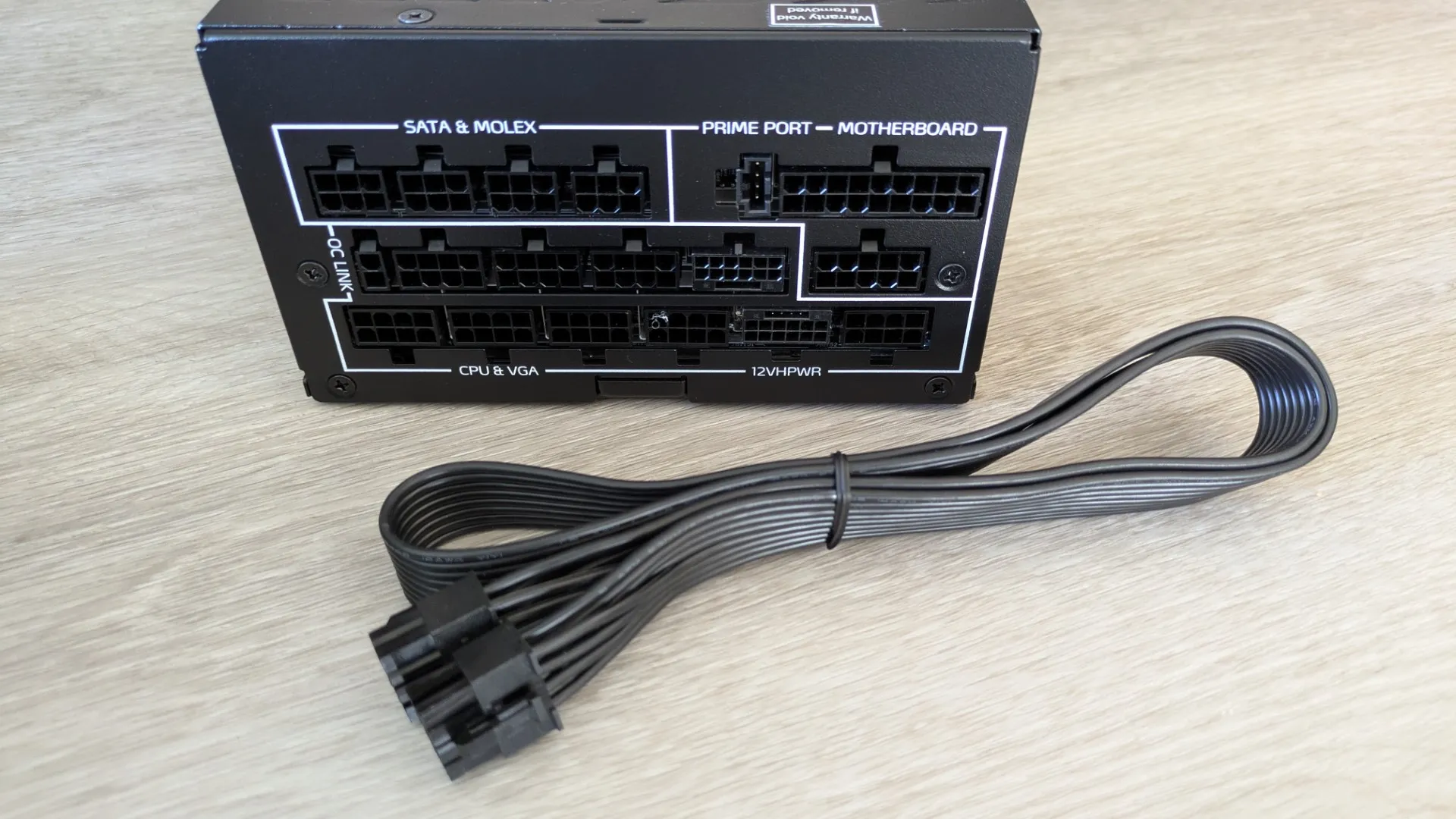

Another standout feature of the Fusion 1600 is its full-digital functionality that is equipped with three microcontrollers in order to offer precise monitoring and management of power delivery. This digital LLC platform ensures optimal performance and reliability, making it a trusted choice for critical applications. Additionally, the power supply integrates seamlessly with the XPG PRIME ecosystem management software, allowing users to customize and monitor its performance with ease. It should also be noted that it provides future proofing with two 12V-2×6 /12VHPWR (12 + 4 PIN) connectors that can handle up to 600W of power to support current and future generation graphics cards.

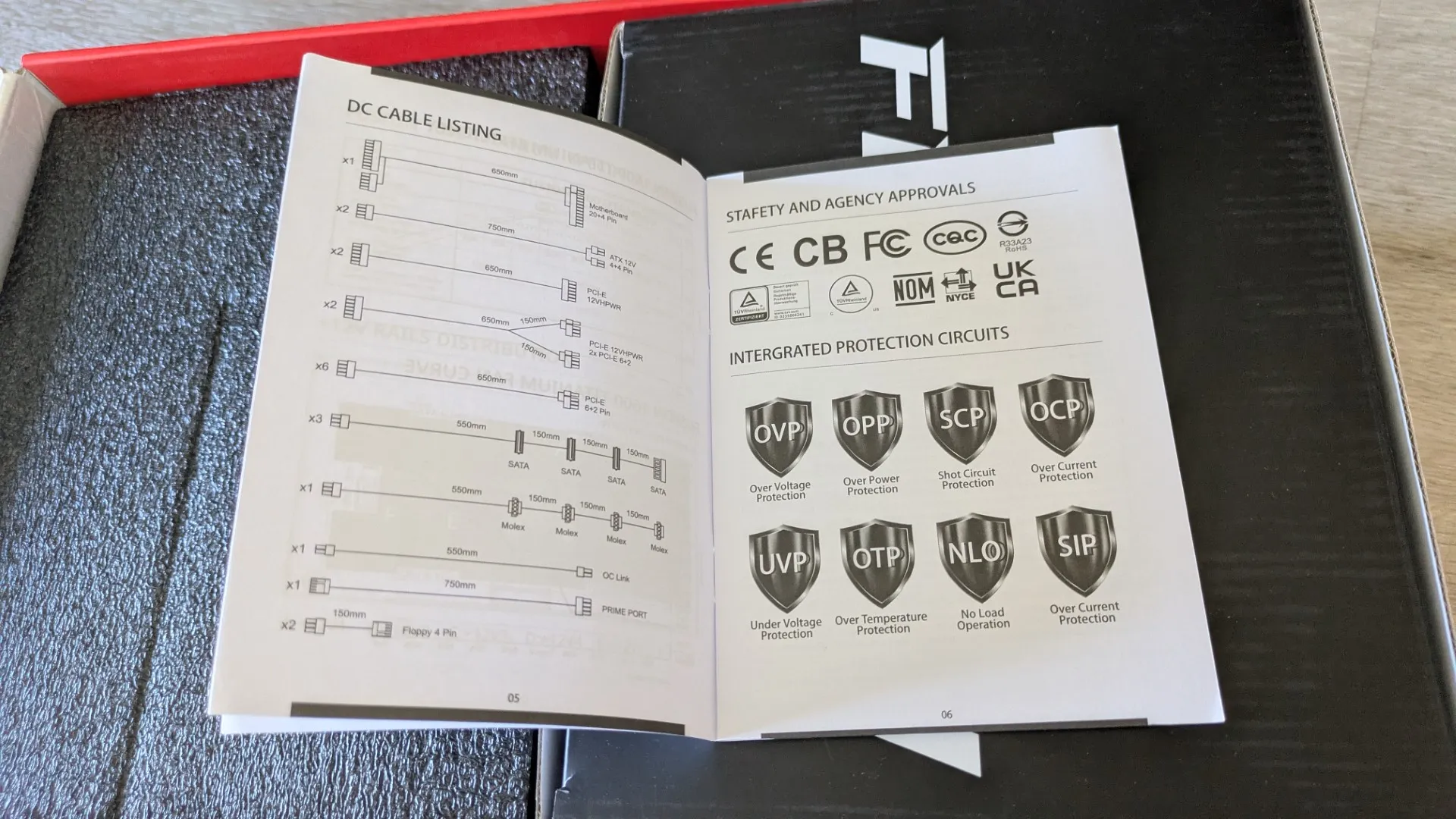

Despite its impressive capabilities, the Fusion 1600 does come with a few considerations as its slightly bulky design may pose challenges for users with compact setups and its premium price point makes it a significant investment. However, for those who require extreme performance and reliability, the Fusion 1600 is worth every penny, especially if you’re looking at running high-end or multiple graphics card, including additional upgrades for your enthusiast, server or gamer rig. Lastly for peace of mind, it comes with a 12-year warranty plus a variety of protections that include – Over Voltage Protection, Over Power Protection, Over Current Protection, Over Temperature Protection, Short Circuit Protection, Surge & Inrush Protection, Under Voltage Protection and No Load Operation.
Final Thoughts?
In conclusion, the XPG Fusion 1600 Titanium Digital Power Supply is a powerhouse that sets a new standard in the industry. Its combination of efficiency, durability, and advanced features makes it a standout choice for high-performance systems. Whether you’re a gamer, content creator or professional, this power supply delivers the reliability and power you need to push your setup to its limits.
Aim for the skies and reach the stars with the XPG Fusion 1600 Titanium Digital Power Supply!
For more information, please visit https://www.xpg.com/en/xpg/pc-components-fusion
