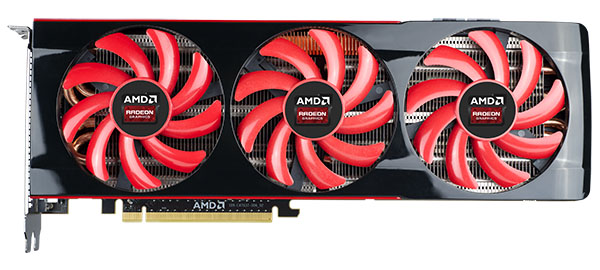

AMD Radeon HD 7990
Here it is... one of the world's most
powerful dual-core graphics cards, the AMD Radeon HD 7990 that boasts a pair of
Tahiti graphics processors which is like two 7970 cards in one. The
Tahiti GPU's uses 28nm technology and supports 2048 stream
processors, a full 384-bit memory bus width plus 3GB of GDDR5 RAM. It
was definitely made for gaming!
However with AMD 7990
HD, it has two of these cards in one which in turn has a core clock of 950Mhz
(1000Mhz with Boost), 6GB of GDDR5 RAM, 1500Mhz Memory Clock plus a
wealth of other features. Your gaming will take you to a whole new
level that has not been experienced before.

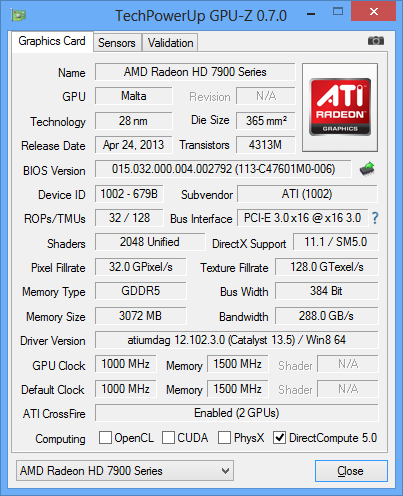

The GPU of the 7990 HD
has also made the transition to the Malta and the like Tahiti series
allows you to seriously overclock the card. In terms of
overclocking, we did manage to push this card to around 1130Mhz with a
maximum memory clock of 1640Mhz. That's quite an impressive feat in
itself.
This is definitely not
your father's gaming card but something far more powerful and superior.
It's seriously the next-generation of graphics cards for PC gamers. For
those techno junkies... let's have a look at the specifications of the HD 7990 below;
Specifications
- 950MHz Engine Clock (Up to 1.0GHz
with Boost)4
- 6GB GDDR5 Memory
- 1500MHz Memory Clock (6.0 Gbps
GDDR5)
- 288GB/s memory bandwidth (maximum)
- 8.2 TFLOPs Single Precision compute
power
- GCN Architecture
- 64 Compute Units (4096 Stream
Processors)
- 256 Texture Units
- 256 Z/Stencil ROP Units
- 64 Color ROP Units
- Quad geometry units
- Quad Asynchronous Compute
Engines (ACE)
- PCI Express 3.0 x16 bus interface
- Full DirectX® 11.1 compatibility
- 9th generation programmable
hardware tessellation units
- Shader Model 5.0
- DirectCompute 11
- Accelerated multi-threading
- HDR texture compression
- Order-independent transparency
- OpenGL 4.2 support
- Partially Resident Textures (PRT)
- Ultra-high resolution
texture streaming technology
- Image quality enhancement
technology
- Up to 24x multi-sample and
super-sample anti-aliasing modes
- Adaptive anti-aliasing
- Morphological Anti-Aliasing (MLAA)
2.0
- DirectX® 9/10/11 Super Sample
Anti-Aliasing (SSAA)
- Automatic LOD adjustment
(Requires AMD Catalyst™ 12.4 or higher)
- 16x angle independent
anisotropic texture filtering
- 128-bit floating point HDR
rendering
- AMD Eyefinity multi-display
technology2
- Up to 6 displays supported with
DisplayPort 1.2 Multi-Stream Transport
- Independent resolutions,
refresh rates, color controls, and video overlays
- Display grouping
- Combine multiple displays
to behave like a single large display
- AMD App Acceleration3
- OpenCL 1.2 Support
- Microsoft C++ AMP
- DirectCompute 11
- Double Precision Floating Point
- AMD HD Media Accelerator
- Unified Video Decoder (UVD)
- H.264
- VC-1
- MPEG-2 (SD & HD)
- MVC (Blu-ray 3D)
- MPEG-4 Part 2 (DivX/Xvid)
- Adobe Flash
- DXVA 1.0 & 2.0 support
- Video Codec Engine (VCE)
- Requires AMD Catalyst
12.7 Beta (Or higher)
- Multi-stream hardware
H.264 encoder
- Full-fixed mode: 1080p
@ 60 FPS encoding
- Hybrid mode: Stream
Processor-assisted encoding
- Enhanced Video Quality
features
- Advanced
post-processing and scaling
- Deblocking
- Denoising
- Automatic
deinterlacing
- Mosquito noise
reduction
- Edge enhancement
- 3:2 pulldown
detection
- Advanced video color
correction
- Brighter whites
processing (Blue Stretch)
- Independent video
gamma control
- Flesh tone
correction
- Color vibrance
control
- Dynamic contrast
- Dynamic video range
control
- AMD HD3D technology5
- Stereoscopic 3D display/glasses
support
- Blu-ray 3D support
- Stereoscopic 3D gaming
- 3rd party Stereoscopic 3D
middleware software support
- AMD CrossFire™ multi-GPU technology6
- Dual, triple or quad-GPU
scaling
- Cutting-edge integrated display
support
- DisplayPort 1.2
- Max resolution: 4096x2160 @
60 Hz per display
- Multi-Stream
- 21.6 Gbps bandwidth (HBR2)
- High bit-rate audio
- Quad HD/4K/UHDTV display
support
- 1080p60 Stereoscopic 3D
(Frame Sequential Format)
- HDMI® (With 4K, 3D, x.v.Color™
and Deep Color)
- Max resolution: 4096x2160 @
30 Hz
- 1080p30 Stereoscopic 3D
(Packed Frame Format)
- Quad HD/4K/UHDTV video
display support
- Dual-link DVI with HDCP
- Max resolution: 2560x1600
- VGA
- Max resolution: 2048x1536
- Integrated HD audio controller
- Output protected high bit rate
7.1 channel surround sound over HDMI with no additional cables
required
- Supports AC-3, AAC, Dolby
TrueHD and DTS Master Audio formats
- AMD PowerPlay™ power management
technology4
- Automatic power management with
low power idle states
- AMD PowerTune technology with
Boost)4
- Intelligent TDP management
technology
- Dynamic clockspeed/voltage/performance
enhancement for games and applications
- AMD ZeroCore Power technology4
- Ultra-low idle power when the
system’s display is in suspend
- Efficient low power mode for
desktop work
- Secondary GPU powers down when
graphics card is idle
- AMD Catalyst™ graphics and HD video
configuration software
- Software support for Windows
Vista, Windows 7 and Windows 8
- AMD Catalyst™ Control Center -
AMD Catalyst™ software application and user interface for setup,
configuration, and accessing features of AMD Radeon products.
- Unified Graphics display driver -
AMD Catalyst™ software enabling other PC programs and devices to use
advanced graphics, video, and features of AMD Radeon™ products.
Pushing all the above aside and translating
this into laymen terms is not an easy feat. The HD 7990 is pure power
and when it comes to calculating graphics, it can throw around a whole
world of information in nanoseconds, especially its raster operations
and texture fill rates. For gaming, this means silky smooth graphics and

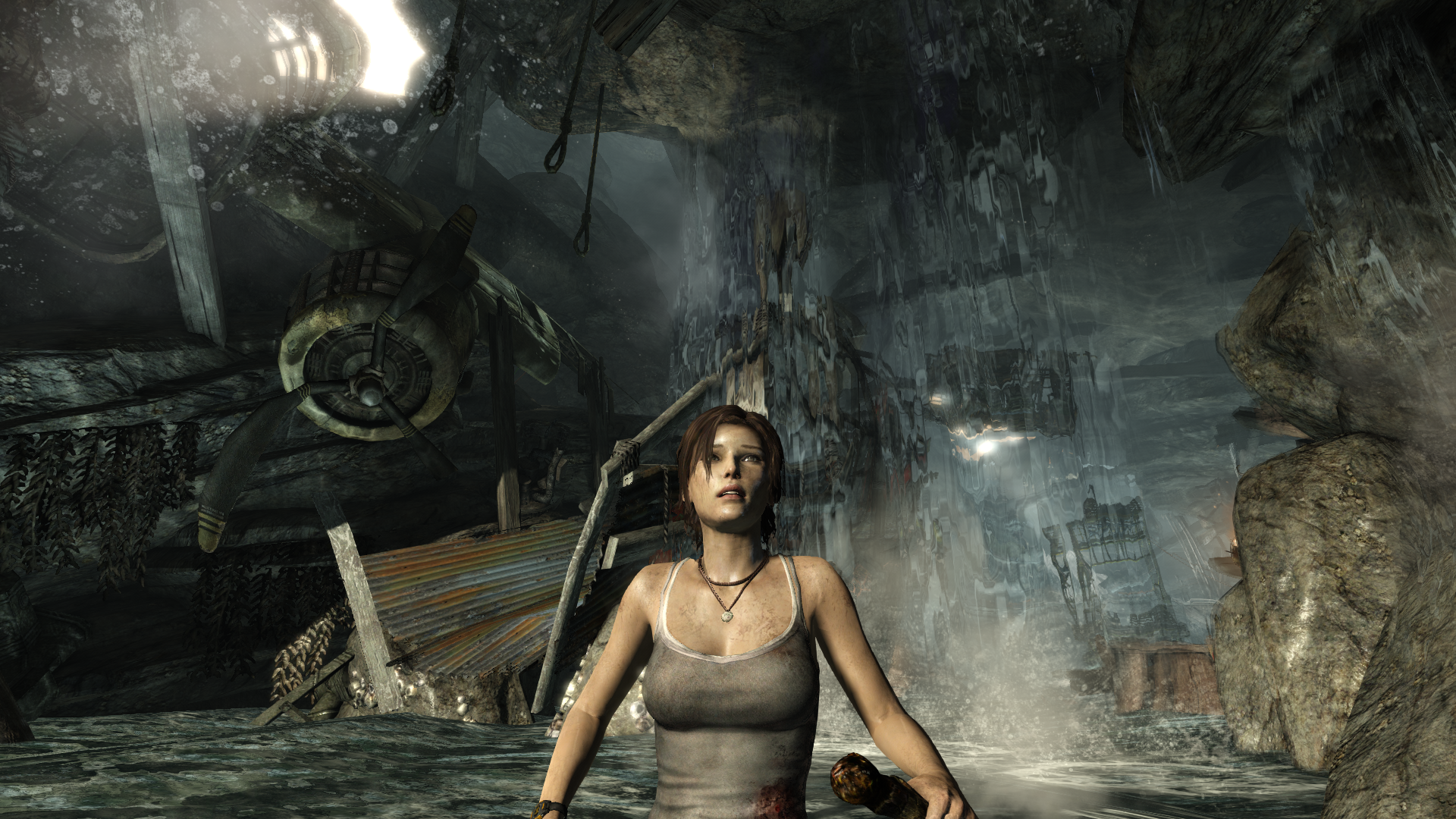

when you see Tomb Raider on this card, you will fall in love with Lara
Croft again, the tessellation on her hair is to die for.

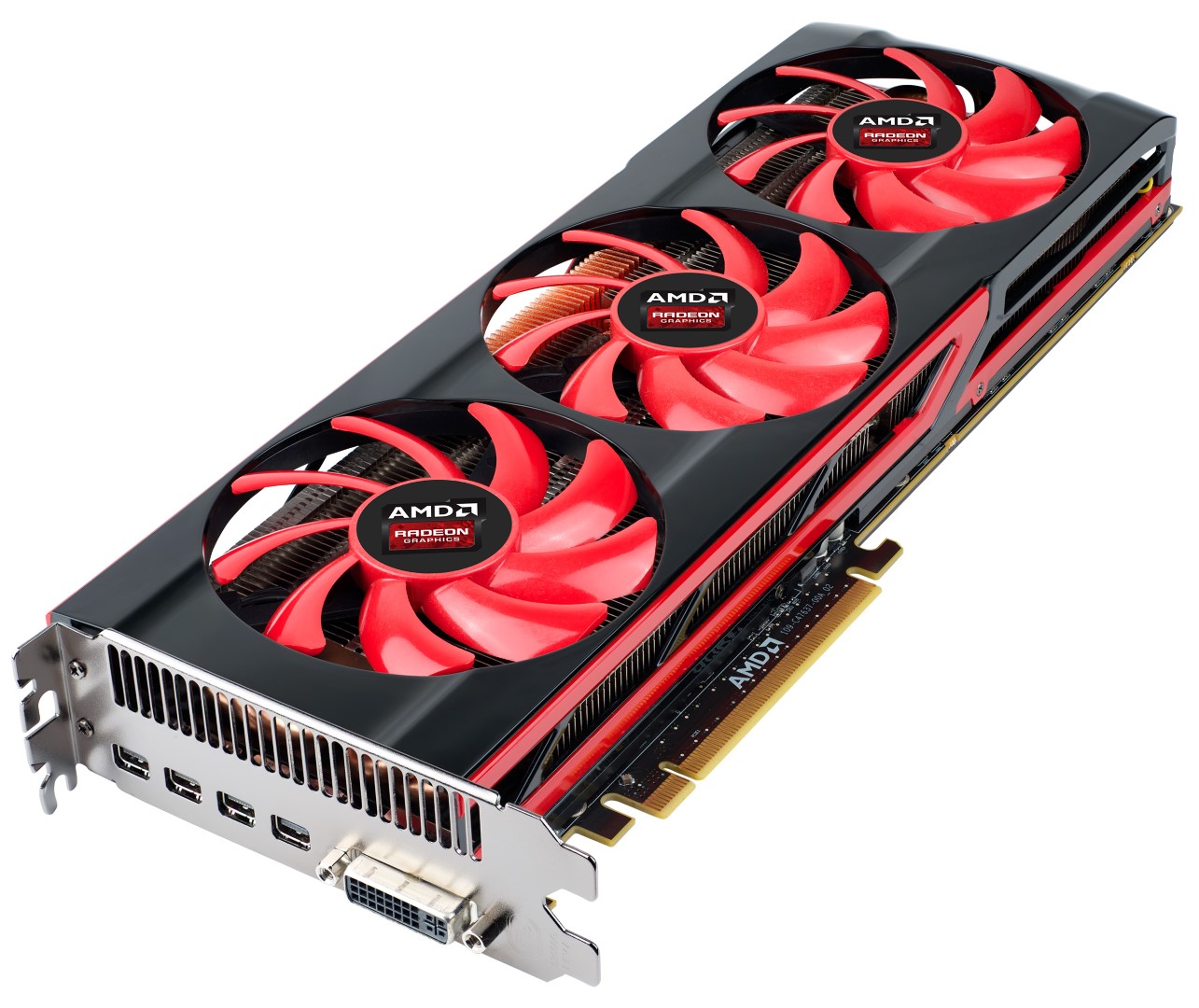

Another interesting element of this card is the
power consumption which is quite low and runs at 375 watts. Generally cards this
powerful and this power hungry are quite noisy but this is not the
case with the HD 7990 and although it has three fans, it is actually
very quiet and almost unnoticeable when your games kick into over drive
and more importantly, it doesn't sound like a jet engine. The card also
supports a ZeroCore mode that improves power consumption of the card
when it is not used by high intensity applications such as games.

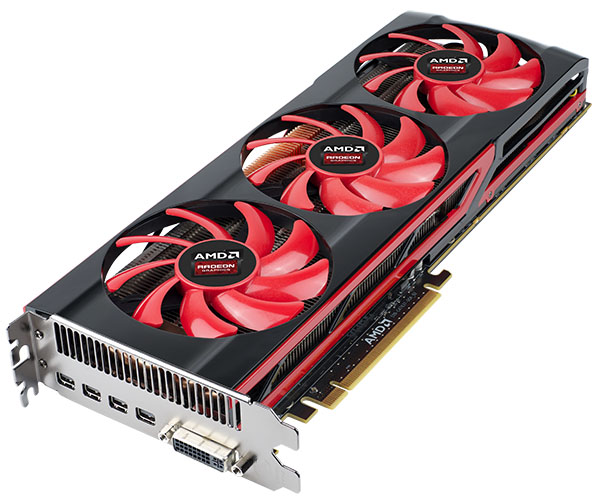

Given that, the card is quite long 30.48cm
(12 inches) and requires two eight-pin power connections, so you need to
ensure that your power supply and motherboard are appropriate for this
beast.

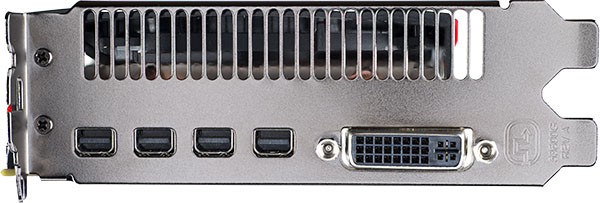

Amazingly, this card can produce video on up to
five display outputs
which is divided into four Mini-Display Ports and one Dual-Link DVI
port. Then again, if you want to go truly insane, you can connect this
card to another HD 7990 via the single crossfire connector. This of
course can be used for other cards from this series such as the HD 7970
or 7950. Test
System
Benchmarking is dependent on a whole wealth of options such as memory,
hard drive speed, CPU speed and lots of other factors. We tested this
card on an Intel based system and for all gaming, we used a FULL HD
resolution of 1920 x 1080.
System Specifications
-
Intel
Core i7-3770K
-
ASUS Maximum V Gene
LGA Intel Z77
-
8GB
Corsair Vengeance Memory DDR4 @ 1600Mhz
-
Crucial m4 SSD 256GB Drive
-
Windows 8 64-bit
This card also supports
the following games natively which is quite unprecedented for a graphics
card. As you can see, these titles are all AAA gaming titles and
BioShock Infinite and Tomb Raider looked amazing on the HD 7990.
3DMark
Before we got into our
gaming tests, we first decided to the test the card with 3DMark 11. This
popular benchmarking application makes extensive use of all the new
features in DirectX 11 including tessellation, compute shaders and
multi-threading. It's an essential tool for both gamers and bench
markers alike. The card scored over 15,000 with 3DMark which is in the
extreme end of high-end graphics cards.
15072

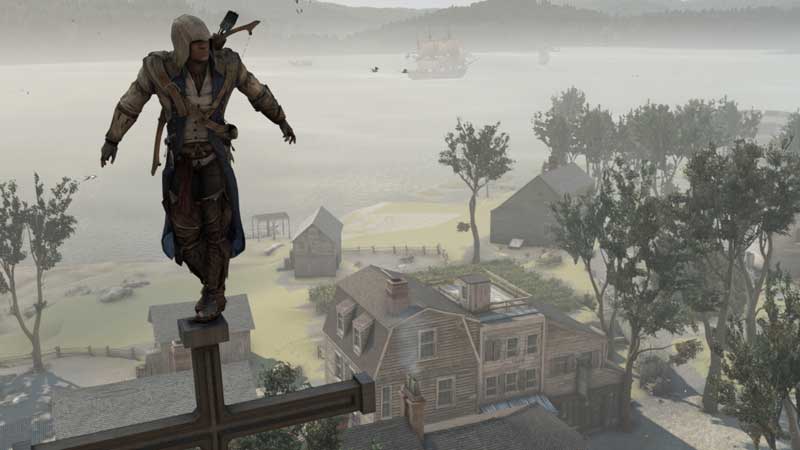

Assassin's Creed 3
In Assassin's Creed 3, you are Connor,
warrior son of a Native American mother and British father. As the
colonies draw closer to revolution, you will dedicate your life to the
freedom of your clan, becoming the spark that ignites the revolution
into a full blaze. Although only scoring 42.9 frames per second, the
game looked spectacular in FULL HD with all the detailed turned on.
42.9 FPS
Batman Arkham City
Batman: Arkham City builds upon the
intense, atmospheric foundation of Batman: Arkham Asylum, sending
players soaring into Arkham City – five times larger than the game world
in Batman: Arkham Asylum – and the new maximum security “home” for all
of Gotham City’s thugs, gangsters and insane criminal masterminds. In
this open world game and at FULL HD, it was silky smooth and looked
fantastic on our 27" LCD.
84.3 FPS
Battlefield 3
Battlefield 3 leaps ahead of its time with
the power of Frostbite 2, the next instalment of DICE's cutting-edge
game engine. This state-of-the-art technology is the foundation on which
Battlefield 3 is built, delivering enhanced visual quality, a grand
sense of scale, massive destruction, dynamic audio and incredibly
lifelike character animations. Scoring almost 150 frames per second,
this is the speed you need to become a first person shooter hero. I
thought this would be the best that this card could produce but I was
wrong.
149 FPS

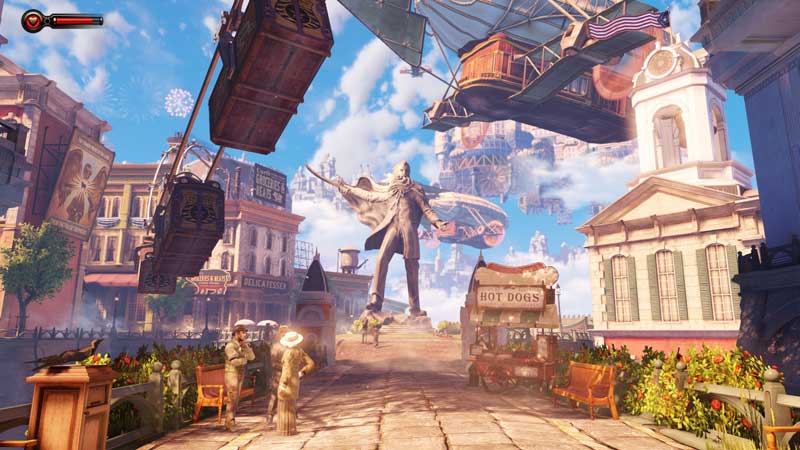

BioShock Infinite
In this first-person shooter
set in 1912, the player
assumes the role of former
Pinkerton agent Booker
DeWitt, who is sent to
Columbia to rescue
Elizabeth, a young woman
imprisoned there since
childhood. He develops a
relationship with Elizabeth,
augmenting his abilities
with hers so they may escape
from a city literally
falling from the sky. This
time the game averaged at
around 160 frames per second
and not only looked amazing
but was flawless in terms of
frame rates.
160.2 FPS
Call of Duty Black Ops
Call of Duty®: Black Ops 2 catapults players to the year 2025 to
confront an insidious criminal mastermind named Raul Menendez who has
stolen the keys to the U.S. military infrastructure and turned our
greatest strengths against us. For another first person shooter, the
card really blasted the frame rate out of the sky with an average of 177
frames per second.
177.3 FPS
Crysis 3
Set in 2047, Prophet is on a revenge
mission after uncovering the truth behind Cell Corporation’s motives for
building the quarantined Nanodomes. The citizens were told that the
giant citywide structures were resurrected to protect the population and
to cleanse these metropolises of the remnants of Ceph forces. Although
Crysis 3 didn't score as impressively as BioShock Infinite or
Battlefield 3, at almost 55 frames per second, it is more than ample.
Even though it may not be as smooth as the aforementioned games, the graphics are insane and look
amazing on the HD 7990.
54.3 FPS

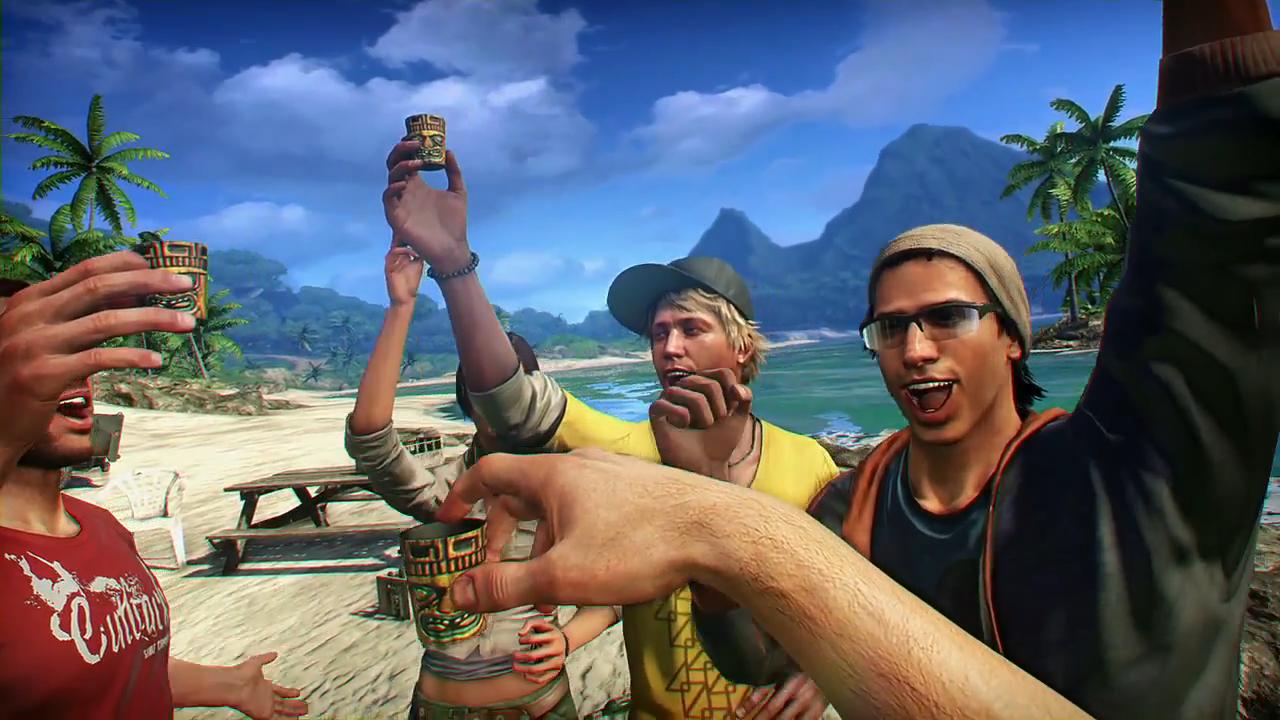

Far Cry 3
Far beyond the limits of civilisation lies
an island, a lawless place ruled by violence and human suffering. You're
Jason Brody, backpacking with your friends around Asia, looking for fun
and adventure. With this holiday gone wrong, the HD 7990 kept the frame
rate very steady and respectable at around 71 frames per second.
71.3 FPS
Tomb Raider
Tomb Raider is an
Action-Adventure game that
introduces players to the origin
of one of the most identifiable
video games icons of all-time,
Lara Croft. The game features a
blend of survival, stealth,
melee and ranged combat, and
exploration gameplay as a young
Lara Croft is forced to push
herself past her know limits to
survive and unravel the dark
history of a forgotten island.
This is how Tomb Raider is meant
to be played... at a glorious
160 frames per second. The
tessellation looks amazing on
this game and was the highlight
of our reviewing experience.
159.3 FPS
Final Thoughts
The AMD HD 7990 definitely gives NVidia
a run for its money and games performed
exceptionally well on it. I was quite impressed with games such as
Bioshock Infinity, Call of Duty Black Ops that were silky smooth. The
only issue with the card that I had is that the length will not
accommodate some cases. With our test case, we needed to remove the hard
drive cage to successfully insert the card into our case and
motherboard.
Apart from the good power consumption, I really cannot wait
to see more DirectX 11 games support this card but with that in mind,
this card is quite expensive and currently retails for around $1199AUD.
Nonetheless this card is the king of cards at present that we could
happily suggest to all those pro gamers around!
Check it out if you have a lazy $1200 lying
around!
|
